Inside a Safe Box Factory – How Electronic Safes Are Made. Ever wondered what goes into crafting that sleek, secure vault where you store your valuables? Get ready for an exclusive backstage tour… we’ll walk through every step—from steel cutting to final testing—revealing how modern electronic safes combine precision engineering, advanced electronics, and rigorous quality control to safeguard your possessions.
1. Raw Material Selection and Steel Cutting
Factories begin by sourcing high-tensile, hardened steel coils—typically 14 to 16 gauge—for the safe’s body and door. Quality control teams verify tensile strength, thickness, and corrosion resistance certifications before accepting shipments. Automated coil feeding systems unspool steel into CNC laser cutters that slice panels with sub-millimeter accuracy. These lasers cut body shells, door faces, and internal reinforcement plates, ensuring uniform dimensions across hundreds of units per batch. Waste steel scraps are collected and recycled on-site to minimize environmental impact, while cut panels move on conveyors to the welding station.
| Material Type | Gauge (inches) | Tensile Strength (psi) | Corrosion Rating |
|---|---|---|---|
| Hardened Steel Coil | 0.063 – 0.083 | 70,000 – 90,000 | Zinc-coated finish |
| Internal Plates | 0.125 – 0.150 | 80,000 – 100,000 | Epoxy primer coated |
2. Panel Stamping and Forming
Stamped press machines shape laser-cut steel panels into the safe’s outer shell contours. High-pressure stamping dies form the body’s corners and door recesses, ensuring a snug, gap-free fit. Robotic arms transfer stamped pieces to forming presses that roll edges and create bolt‐hole patterns. Precision sensors verify each panel’s curvature and hole alignment within ±0.2 mm tolerances. Formed panels proceed to deburring stations where automated brushes remove sharp edges, protecting assembly workers and ensuring safe box integrity.

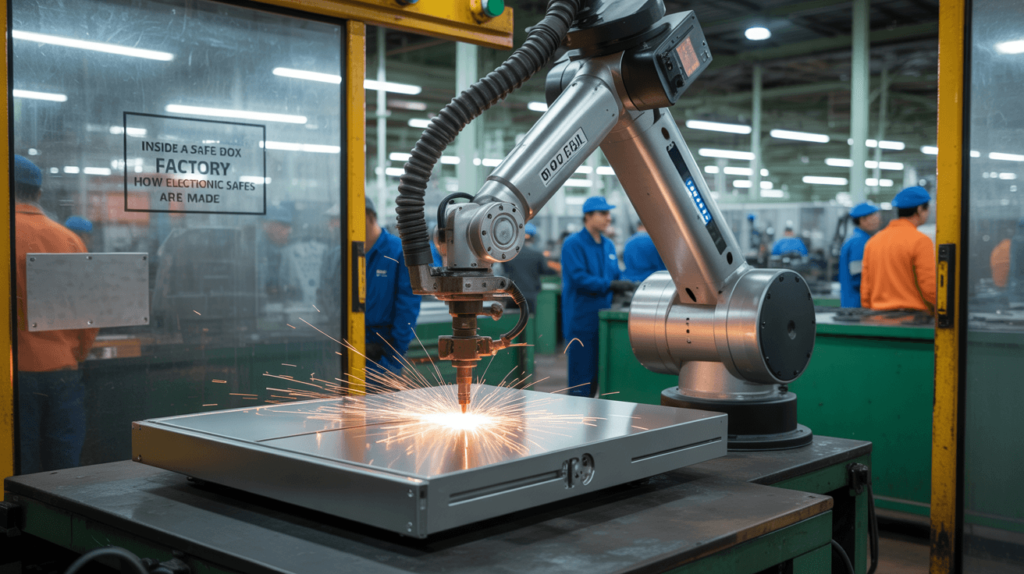

3. Welding and Structural Assembly
Panels converge at the welding bay, where robotic TIG welders fuse body seams and door frames. Each joint undergoes multiple passes for full penetration and zero porosity. Ultrasonic and dye-penetrant weld inspections identify defects, triggering rework if any contamination or weak spots appear. After body and door assembly, hinge brackets and bolt housing reinforcements are tack-welded. Skilled technicians then add anti-pry flanges—folded steel edges—around door openings. The welded safe box shell moves to stress-relief ovens, where controlled heat cycles (up to 400 °F) reduce internal stresses and prevent future warping.
4. Surface Treatment and Powder Coating
Once stress-relieved, shells undergo multi-stage surface preparation: acid baths remove oils and mill scale, followed by deionized water rinses. Panels receive a phosphatizing rinse to promote powder adhesion. Industrial electrostatic spray booths then apply epoxy-polyester powder coatings in several passes, building 60–80 μm thickness. Cured in 375 °F ovens, these coatings resist corrosion, chipping, and high temperatures. Factories match colors to customer specifications—matte black, textured charcoal, or custom shades. Final inspections use spectrophotometers to verify color consistency and thickness gauges to confirm coating uniformity.
| Process Step | Temperature | Duration | Purpose |
|---|---|---|---|
| Acid Bath Rinse | Ambient | 2 minutes | Remove oil and mill scale |
| Phosphatizing Rinse | Ambient | 1 minute | Enhance powder adhesion |
| Powder Coating Application | Ambient | Continuous | Build corrosion-resistant layer |
| Curing Oven | 375 °F (190 °C) | 20 minutes | Harden epoxy-polyester powder |
5. Fireboard Liner Fabrication
Fireproofing requires precise liners. Factories mix gypsum or ceramic composites—ferro-cement blends with refractory fibers—under strict ratios to achieve specified densities. Automated molding presses shape liners into 1.25–2-inch panels, which then cure at moderate heat (~200 °F) to eliminate moisture and stabilize structure. Panels undergo X-ray density scans, ensuring no voids or cracks. Batch traceability assigns each liner a QR code linking it to its steel shell. Liner inserts slot into shell interiors with high-temp adhesive beads; door frames receive intumescent gasket strips that swell under heat, sealing door perimeters.
6. Locking Mechanism Integration
Electronic safe boxes employ microprocessor-controlled lock modules. Lock assembly teams install mechanical drive motors, solenoids, and sensor arrays into reinforced steel baskets within the door. Circuit boards featuring ARM microcontrollers, OTA-capable wireless modules, and secure EEPROM storage mount directly to lock housings. Electronic keypads or biometric sensors attach to the door faceplate—waterproof cable harnesses connect to internal boards. After wiring, firmware engineers flash encryption-hardened code and perform self-tests: simulate correct and incorrect PINs, check sensor reads, and confirm relock functions after tamper simulations.
7. Electronics Testing and Calibration
Lock boards enter climate-controlled test chambers cycling temperatures from -10 °F to 150 °F, verifying component tolerance under extreme conditions. Automated test rigs press thousands of simulated PIN entries, confirming relock thresholds and lockout modes after repeated failures. Current draw sensors ensure battery compartments—standard AA/AAA or Li-ion modules—supply adequate power for 3,000+ actuations. Biometric safes undergo fingerprint enrollment trials: sensors validate accuracy rates >98% across 500 test subjects. Successful units pass to the integration line; any error flags trigger rework or component replacement.
| Test Type | Conditions | Pass Criteria |
|---|---|---|
| Temperature Cycling | -10 °F to 150 °F | No firmware crashes; correct actuation |
| Cycle Testing | 3,000+ PIN actuations | <0.5 A current draw on average |
| Biometric Accuracy | 500 enrollments | ≥98% true positives, ≤1% false accepts |
| Lockout Simulation | 5+ failed attempts | Activates lockout for defined timeout |
8. Final Assembly and Quality Assurance
Certified QA inspectors perform a 5-point check: examine weld seam integrity, verify powder coating thickness, confirm liner installation, test lock operation, and validate door seating for uniform gasket contact. Inspectors use handheld infrared thermometers to ensure no unusual hotspots on test burns. Shelving and trays—removable nylon or metal—install inside, followed by adhesive documentation pouches containing user manuals and certification labels. Each safe box receives a unique serial number etched onto its door and linked in the factory’s ERP system, enabling post-sale tracking and warranty claims.
9. Packaging and Logistics
Safes travel in custom corrugated boxes with foam inserts protecting faces and edges. Palletized shipments group safes by model and destination, each pallet wrapped in shrink-film to guard against moisture. Logistics teams coordinate sea-freight for international orders—container load optimization ensures minimal damage—and expedited air-freight for urgent orders. Tracking QR codes on each pallet allow customers to monitor transit in real-time. Warehouses maintain climate-controlled storage at 50–80% humidity to prevent corrosion or liner moisture absorption.
10. Installation Support and After-Sales Service
Post-purchase, manufacturers offer installation kits with anchors, drill bits, and rubber isolation pads to preserve fire ratings during anchoring. Online video tutorials guide end-users through bolt torque specifications and clearance requirements. Technicians provide phone and chat support for lock programming, firmware updates, and override procedures. Spare parts—keypads, gaskets, circuit boards—ship within 24–48 hours from regional distribution centers. Some premium service plans include annual on-site inspection to re-certify fire and electronic performance.
| Service Type | Delivery Timeline |
|---|---|
| Spare Parts Shipment | 24–48 hours |
| Firmware Updates | Instant via OTA |
| Technical Support | 24/7 phone/chat |
| On-Site Recertification | Scheduled annually |
11. Environmental and Sustainability Initiatives
Leading factories minimize waste and energy usage through steel scrap recycling loops, water-based powder coatings with low VOC emissions, and solar-powered production lines. Liner production reuses gypsum byproducts from construction sites. Packaging uses 100% recycled cardboard and biodegradable foam inserts. Lifecycle assessments track carbon footprints, helping customers select eco-friendly models. Some brands offer take-back programs—return old safes for proper recycling—offsetting environmental impact.
12. Case Study: From Factory to Front Door
A major hotel chain order of 1,000 electronic safes began with specification alignment—1.0 cu ft digital PIN models with UL 350 °F 60-minute ratings. Prototypes underwent 3-month pilot testing in select rooms, gathering guest feedback on access speed and noise levels. Following design tweaks—quieter motors and backlit keypads—the full order rolled out. Installation teams, trained via factory webinars, anchored safes in guest closets using provided kits. Ongoing support reduced lockout incidents by 80% year-over-year. Warranty claim rates remained below 0.5%, demonstrating robust manufacturing quality.
13. Innovations and Future Directions
Factories now explore graphene-enhanced liners offering 30% weight reduction and superior heat absorption, enabling thinner liners without compromising fire ratings. Smart safes integrate secure Bluetooth LE or NFC modules for smartphone unlocking, paired with encrypted cloud-based audit logs. AI-driven anomaly detection flags unusual access patterns—multiple late-night attempts—alerting property managers instantly. 3D printing prototypes rapid-cycle liner designs, accelerating new material testing. As sustainable practices evolve, carbon-neutral certification for safe production is on the horizon.
| Innovation | Benefit |
|---|---|
| Graphene Liners | Thinner, lighter insulation with equal fire performance |
| IoT Connectivity | Cloud audit logs; smartphone access |
| AI Anomaly Alerts | Real-time security breach notifications |
14. Buyer Tips: What to Ask Suppliers
When selecting a manufacturer, inquire about:
- Certified Test Reports: Request UL/ETL documentation with test dates and internal temperature logs.
- Material Specifications: Steel gauge, liner composition, gasket types.
- Welding Quality: Robotic/TIG methods and third-party weld inspection processes.
- Electronics Details: Lock module certifications (UL 2058), battery life expectations, OTA update support.
- After-Sales Support: Spare part availability, technical assistance, recertification services.
15. Final Thoughts and Purchase Checklist
To choose the right electronic fireproof safe:
- Define your storage needs—documents, cash, electronics—and required capacity.
- Verify certifications (UL 350 °F, ETL, UL 125) and inspect test reports.
- Confirm steel gauge (14–16 ga) and liner type (gypsum vs. ceramic composite).
- Choose lock mechanism—mechanical, PIN, biometric, or hybrid—based on reliability and convenience.
- Assess installation options—anchored floor or wall vs. portable—and ensure proper kits.
- Review maintenance requirements—battery, gasket inspections, liner recertification.
- Compare warranty and support offerings—24/7 assistance, spare parts lead times.
- Evaluate eco-friendly manufacturing practices if sustainability matters.
- Test user interface—keypad backlighting, audio feedback, override procedures.
- Confirm logistics solutions—packaging, shipping times, customs documentation.
By following this guide, you’ll select a safe box factory’s best product to protect your valuables reliably and efficiently.
FAQ
Q1: What does UL 72 Class 350 certification guarantee?
It ensures the safe’s interior remains below 350 °F for a specified duration (30–120 min) when exposed to external temperatures over 1,550 °F.
Q2: How often should I replace batteries in an electronic safe?
Replace AA/AAA batteries every 6–12 months or when a low-battery indicator appears, to avoid being locked out.
Q3: Can a portable fireproof safe perform as well as an anchored model?
Portable safes can match fire ratings but rely on weight and stabilization methods—rubber mats or strong Velcro—for theft resistance, which is lower than anchored units.
Q4: What maintenance keeps a fireproof safe in top condition?
Monthly exterior cleaning, annual gasket and bolt inspections, battery replacements, and liner checks every five years ensure continuous performance.
Q5: Are smart safes with Bluetooth more secure than traditional models?
Smart safes offer convenience and real-time audit logs but introduce potential cybersecurity risks. Evaluate encryption standards and firmware update policies when choosing smart models.
